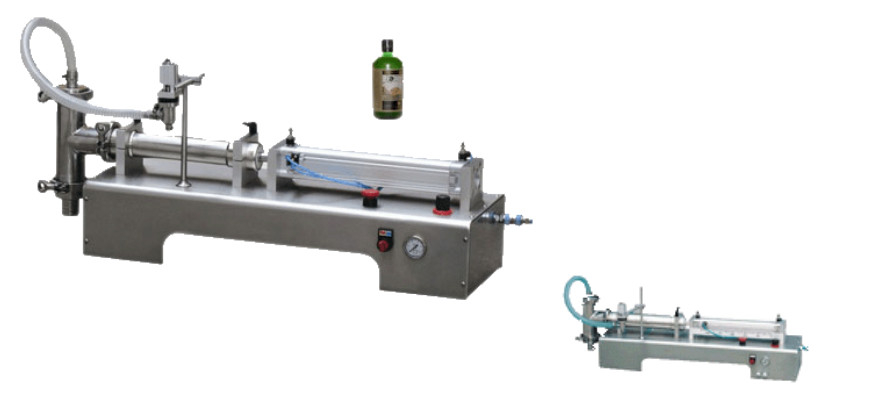

Liquid Filling Machine Single / double DY/SYF
Main Purpose:
. The filling machine models applicable to Chinese medicine, Japan, food, pesticides and special industries, and is the ideal liquid for filling equipment.
Principle Features:
. DY series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
. Filling Mentou used Drip-filling and lifting devices
- Place of Origin: jiann
- Brand Name: xunjie
- Model Number: DY/SYF
Technical Parameters:
. Voltage: 220/110 V 50/60Hz
. Power: 10 W
. Rated pressure :0.4-0.6 MPa
. Filling speed :10-30 bottles / minute
. Filling accuracy: ± 1
Model | DY60 | DY125 | DY250 | DY500 | DY1000 | DY2500 | DY5000 |
Filling may be scope(ml) | 5-60 | 10-125 | 25-250 | 50-500 | 100-1000 | 250-2500 | 500-5000 |
Filling of the best(ml) | 25-60 | 50-125 | 100-250 | 200-500 | 300-1000 | 500-2500 | 1000-5000 |
